1. FACTORY ECU & MICROCONTROLLER INSTALLED ON THIS VEHICLEBENCH / BOOT / OBD VERIFIED
| Make & Model (Chassis) | Dodge — Sprinter(VB) |
|---|---|
| Engine & Power Spec | 2500 2200 CDI • 163 |
| Engine Control Unit (ECU) | DELPHI CRD2.x |
| Internal Microcontroller (MCU) | MPC556x |
| Read / Write Connection Mode | Mode 18 |
| Supported Programmer Functions | Built-in Automatic DTC Fault Code Off Calculator (DTC OFF) • Full PFLASH + DFLASH Backup Read/Write (1:1 ECU Cloning) + Auto Checksum Correction |
| Available Files in 800 TB Vault | Exact ECU Maps: 0 (.A2L/.KP/.OLS) | Family Maps: 0 | ROMs: 0 |
2. OFFICIAL BENCH / BOOT ECU CONNECTOR PINOUT DIAGRAM2 DIAGRAMS

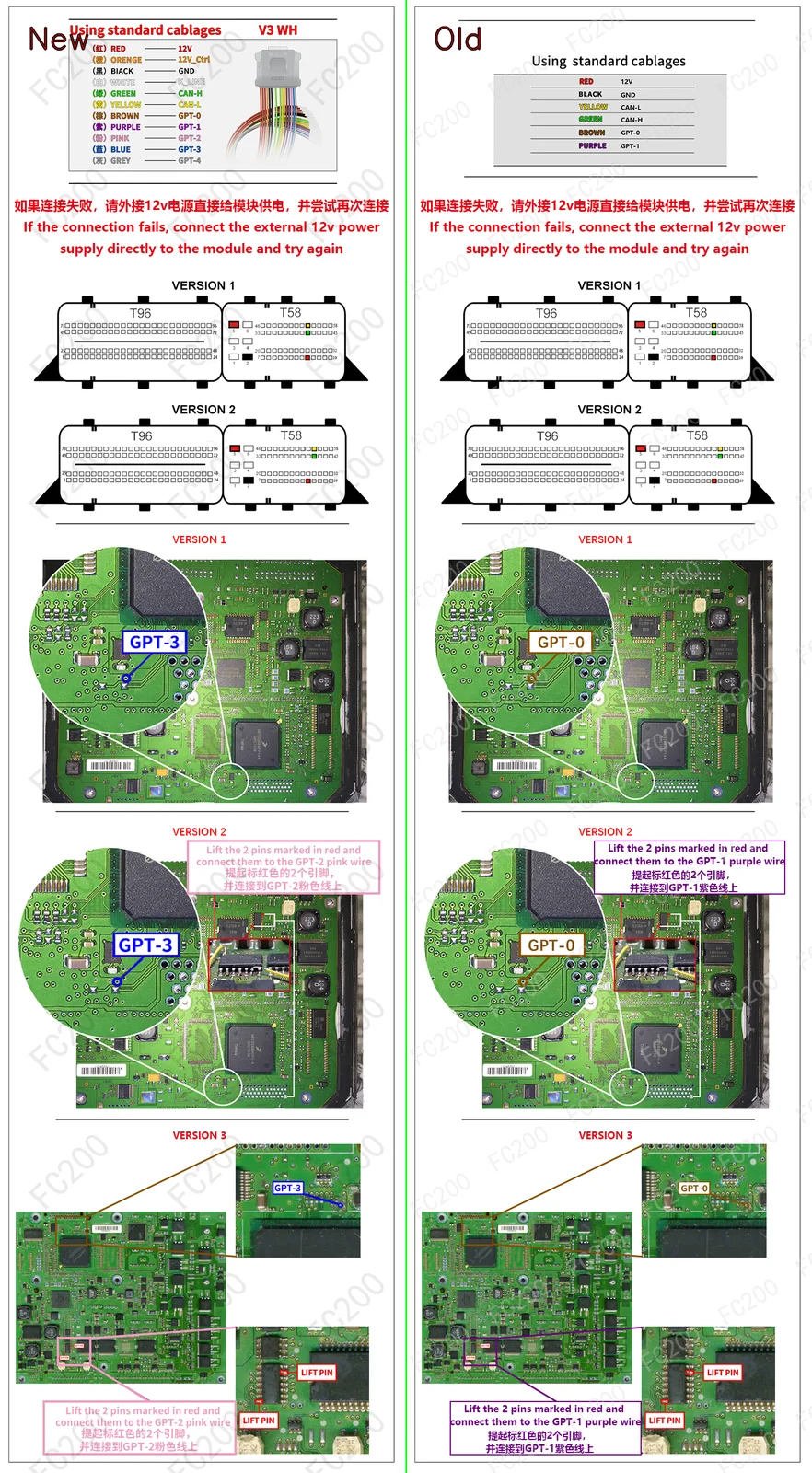

OFFICIAL BENCH / BOOT ECU PINOUT DIAGRAM: BOOT_DELPHI CRD2.x MPC556x.png

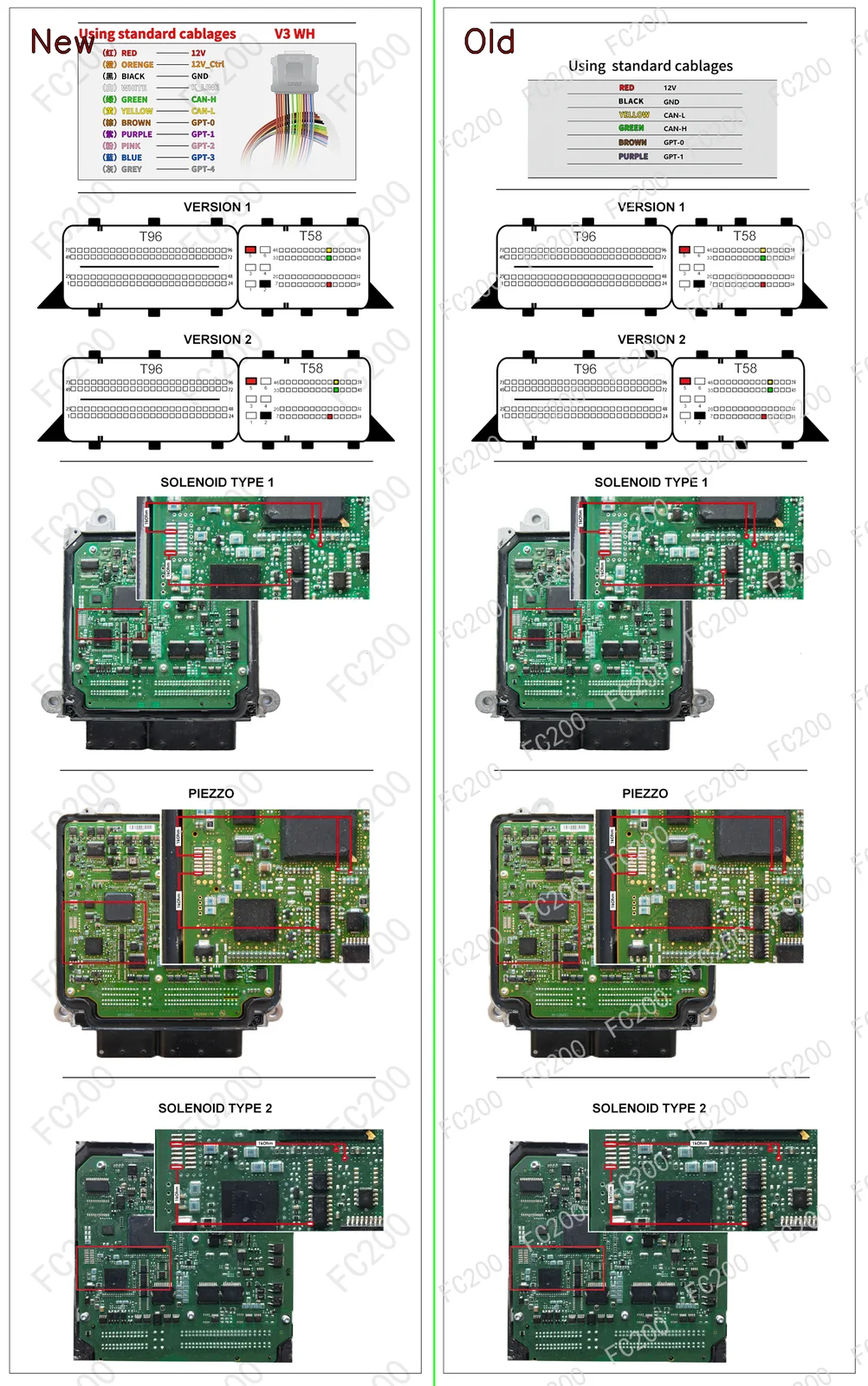

OFFICIAL BENCH / BOOT ECU PINOUT DIAGRAM: BOOT_DELPHI CRD2.x.png
